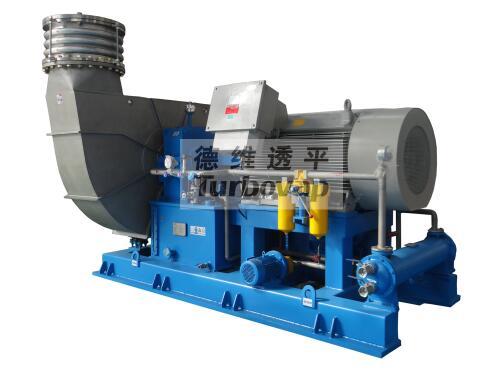

MVR Compressor

Summary
Turbovap independently developed and produced centrifugal compressors and its auxiliary products, especially centrifugal compressors used in the fields of evaporation, distillation,
Quantity
-
+
没有此类产品
I want to make an inquiry
产品规格



Product specification:

Turbovap independently developed and produced centrifugal compressors and its auxiliary products, especially centrifugal compressors used in the fields of evaporation, distillation, specification as follows:



Item Scope
Mass flow rate(MVR system evaporation) 1~200 T/hour
Volume flow 3000~280000 m³ /h
Temperature rise of saturated steam per single-stage unit 6~26 °C
Rotational speed of impeller 5000~40000 R/M
Single-stage Highest Pressure Ratio 3.5


Higher temperature rise can be achieved by single machine with multicompression, or multi-parallel implements larger flow.



Turbovap independently developed and produced centrifugal compressors and its auxiliary products which are used in the fields of evaporation, distillation, recovery of tail gas, etc., and designed and manufactured the complete mechanical vapor recompression (MVR) evaporators and automatic control systems. At present, the parameter range of vapor compressors designed and produced by Turbovap are: single-machine quality flow rate (MVR Evaporation):1 to 200 t/hr, single-stage vapor temperature rise: 26℃. For higher flow rate and higher temperature rise, it can be realized by connection in parallel and series respectively. The core equipment for the whole MVR evaporation process is the mechanical vapor compressor, and the centrifugal vapor compressor developed and produced Turbovap can be applied to various evaporator operating environments and evaporation liquid.

Corresponding parameter set not found, please add it in property template of background
暂未实现,敬请期待
暂未实现,敬请期待

Application

Sewage treatment in production of monosodium glutamate
Inorganic salt and organic salt concentration
Milk powder production by low temperature falling film evaporation
Alcohol slops treatment by evaporation
More Case
Baosteel —— Cold rolling wastewater
Zhonghenglong Gold —— Precious metal
