Focus On Steam Compressors
-
About Us
-
Applications
-
Specializing in the manufacturing and application of vapor-compression chillers.
Common forms of MVR evaporation
Common MVR evaporation configurations include: MVR plate evaporators, MVR tubular forced-circulation evaporators, and MVR tubular thin-film evaporators.
★ Delivers significant energy savings for users ★ Effectively reduces new project capital investment for users ★ Makes full use of existing evaporation equipment ★ Maintains or increases the original evaporation capacity ★ Preserves or enhances the existing evaporation process
Product Description: Heat pump distillation technology replaces the conventional process’s consumption of one ton of steam with 40–120 kWh of electricity (depending on the temperature difference between the tower top and reboiler). Product Keywords: Heat Pump Distillation

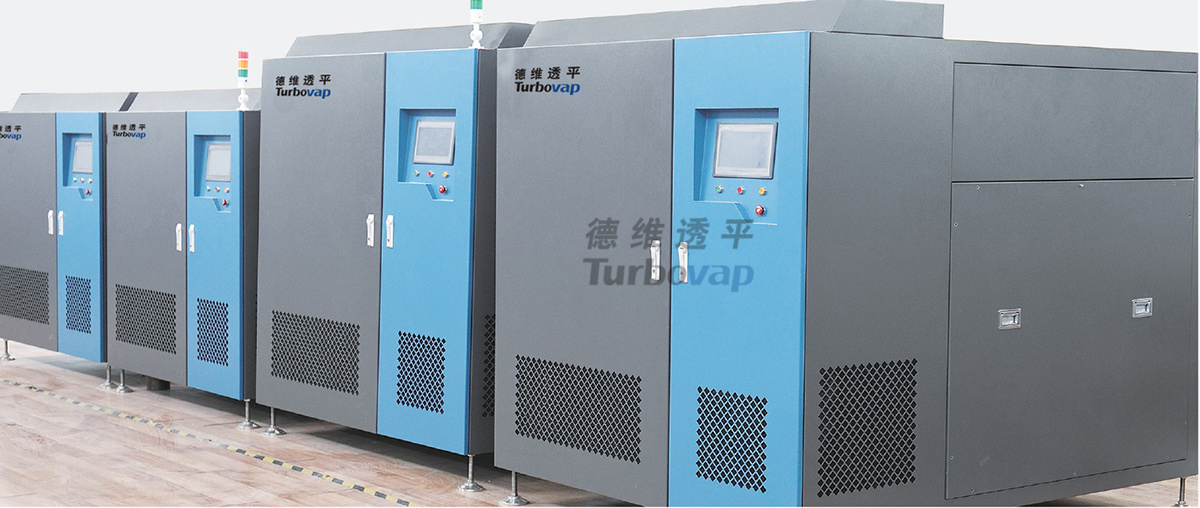

Turbovaps can custom‑manufacture steam‑boosting compressors to meet specific customer requirements. To date, it has a proven track record across a wide range of applications, with inlet pressures as low as 6 kPa absolute (corresponding to saturated water vapor at 37°C) and outlet pressures up to 1,500 kPa absolute (saturated water vapor at 200°C). These units are ideally suited for situations where plant steam supply pressure is insufficient or when low‑pressure by‑product steam cannot be utilized. Typically, for every doubling of steam pressure (absolute), power consumption increases by approximately 40 kWh; in most operating conditions, the investment can be recouped relatively quickly.
